RR Kabel FR-HSF 0.75sq. mm 200 Mtr.

FR (Flame Retardant) insulation 70°C

Hazardous substance free

Does not propagate flame & fire.

Application

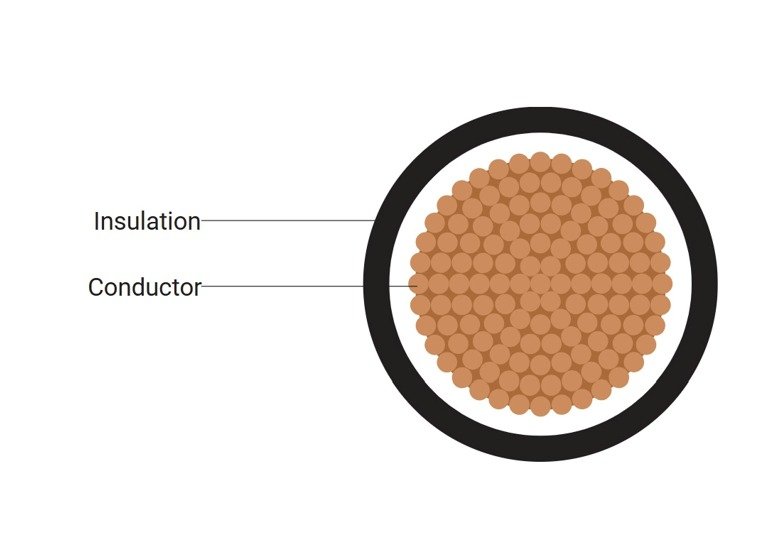

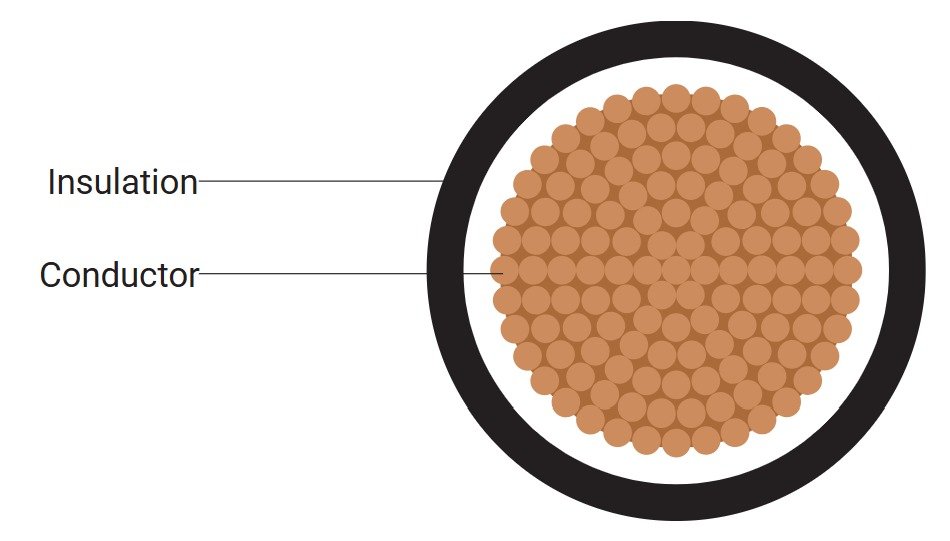

Flexible single core cable with Flame Retardant PVC insulation. This cable can be used in panels, cabinets, machines and internal wirings with switchgears, relays, controllers, equipments, controls units, etc.

Technical Data

Approvals: IS 694 marked, FIA/TAC

Cable Code: Y (FR)

Voltage Grade: Up to and including 1100V

Conductor: Flexible electrolytic annealed plain copper, class 5, IS 8130

Insulation: FR (Flame Retardant) PVC, IS 5831

Packing: 200 mtr. In polybag packing up to 4 sq. mm and shrink wrap packing for 6 Sq. mm and above. Product also available in 100 meter packing.

Properties

• Temperature range: -15°C to +70°C
• Max. short circuit temperature rating: 160°C
• Self-extinguishing and flame retardant according to IS 10810 P – 61
• Free from 240+ hazardous substance
